Electric Waste Oil Pump

Get a Price/Quote

Product Details:

Surface Finish Smooth
Features Durable
Function Hand Tools
Tool Type fuel oil pumps
Material Stainless Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electric Waste Oil Pump Product Specifications

Features Durable
Surface Finish Smooth
Tool Type fuel oil pumps
Material Stainless Steel
Function Hand Tools

Product Description

Electric Waste Oil Pump

Special purpose electric pump for waste oil evacuation
Motor with thermal overload protection to prevent over heating
Self priming ZAMAC body with stainless steel shaft & cover can handle a wide variety of fluids
Flexible impeller design enables pumping high viscosity fluids at high flow rates

Dual threaded suction & discharge ports:

3/8" NPT (F) on the inside &
3/4"-11.5 NH (M) on the outside

Suitable for pumping used engine oil, transmission oil, hydraulic oil etc.

Available in the following power source options:

220V, 50Hz AC
12V DC

Duty Cycle: 45 min ON / 45 min OFF
WETTED COMPONENTS ZAMAC, Stainless Steel, Nitrile Rubber
RECOMMENDED USE Used Oil, Engine Oil, Transmission Oil, Hydraulic Oil, Water, Ethylene Glycol
DO NOT USE WITH Gasoline, any flammable media

SPECIFICATION

	EWOP/220/EU	EWOP/12
Flow Rate	23 LPM	17 LPM
Max. Pressure*	18 PSI (1.25 BAR)
Suction Lift (Dry/Wet)	82 cm / 243 cm
Discharge Head (Water)	12.2 M
Max. Viscosity	2000 SSU (SAE 30)
Power Cable Length	182 cm	-

* As pressure increases the flow rate will decrease.

ORDERING INFORMATION

CAT NR.	INPUT POWER	BOX QTY.
EWOP/220/EU	220V, 50HZ AC	1
EWOP/12	12V DC	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waste Oil Handling' category

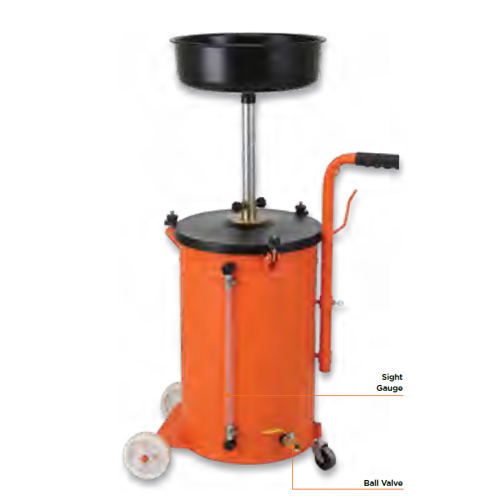

Heavy Duty Steel Truck Drain Surface Finish : Smooth Features : Durable Function : Hand Tools Tool Type : waste oil drainer Material : Stainless Steel
