Grease Control Valve Metered

Get a Price/Quote

Product Details:

Features Durable
Surface Finish Smooth
Function Hand Tools
Tool Type digital control valves
Material Carbon Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Grease Control Valve Metered Product Specifications

Tool Type digital control valves
Features Durable
Surface Finish Smooth
Material Carbon Steel
Function Hand Tools

Product Description

Grease Control Valve Metered

Premium quality grease control valve, for use with air operated grease pumps
Built-in high accuracy digital grease meter for dispensing exact amount of grease
Ability to measure amount of grease dispensed prevents both over & under lubrication & is useful in saving bearing failures
Provides continuous grease flow, with trigger fully pressed
Steel construction, provides durability & longevity. Meter uses oval gear mechanism
Ergonomically designed pistol handle
Comes complete with 6" steel extension, heavy duty coupler & 360° Z swivel

SPECIFICATIONS

Control Valve Type	Continuous Flow
Meter Type	Digital Oval Gear
Grease Flow	0.1 to 2.5 kg / minute
Max. Working Pressure	7,500 PSI (517 BAR)
Unit of Measurement	kg /gms / lbs
Accuracy	± 3%
Resettable Batch Total	9,999 gms
Cumulative Total	99999.9 kg
Battery Type	1.5 V (Two numbers)

DGM/2/N: Grease meter availableas spare for in-line applications
DEVELOPS: UPTO 7,500 PSI (500 BAR)

WARNING

Skin injection hazard.
Keep away from nozzle

CAUTION

The gun is continuous action.
Be careful not to over lubricate.

ORDERING INFORMATION

CAT NR.	DESCRIPTION	THREAD SPECIFICATION	BOX QTY.
APG/HD/Z/1-4F/GM/B	Meter fitted to a grease control valve	Inlet: 1/4" BSPT (F)	1
DGM/2/N	In-line grease meter	Inlet/Outlet: 1/8" NPT (F)	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Greasing Equipment' category

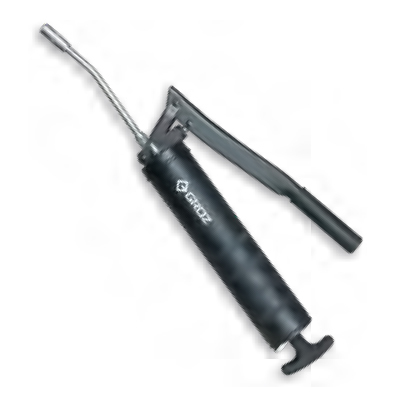

Lever Grease Gun Super Value Features : Highpressure delivery ergonomic design suitable for grease applications Tool Type : Grease Gun Surface Finish : Powdercoated surface for durability Material : Highgrade metal (steel) and durable rubber components, Other Function : Dispenses grease Gauge : Standard pressure gauge supported (rating not specified) Voltage : Not applicable (manual tool) Warranty : 6 months against manufacturing defects Motor Power : Manual operation (no motor) Power Source : Manual handpowered Grip Type : Ergonomic nonslip handle grip Shape : Cylindrical body with lever handle Dimension (L*W*H) : 400 mm x 150 mm x 50 mm Handle Material : Steel Tensile Strength : High tensile strength suitable for heavyduty applications

Send Inquiry

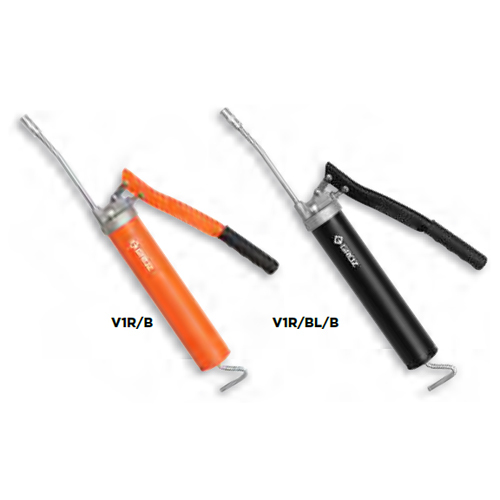

Lever Grease Guns V Series Features : Heavyduty lever action ergonomic design and easytouse functionality Tool Type : Lever grease gun Surface Finish : Highquality painted finish for durability Material : Other, Steel body with plastic components Function : Used for lubrication by pumping grease into machinery components Gauge : Highpressure gauge for precise application Voltage : Not applicable (manual operation) Warranty : 1year standard warranty Motor Power : Manual operation (leveroperated no motor) Power Source : Manual (handoperated) Grip Type : Ergonomic grip handle for ease of use Shape : Cylindrical tube shape Dimension (L*W*H) : Standard dimensions suitable for grease gun application Handle Material : Other, Durable steel and plastic combination Tensile Strength : Designed for high tensile strength to withstand heavy usage

Send Inquiry

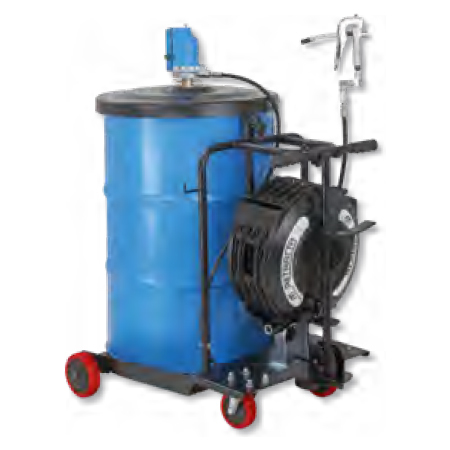

Portable Greasing System Features : Mobile design durable construction equipped with hose reel and greasing gun Tool Type : Portable lubrication and greasing system Surface Finish : Painted and powdercoated finish Material : Other, Steel and plastic (mainly drum and framework) Function : Portable greasing and lubrication system for industrial applications Gauge : Gauge not visible in the image Voltage : 220V (assumed based on standard industrial equipment) Warranty : Manufacturers warranty not visible in image Motor Power : Not shown explicitly in the image Power Source : Electric motor Grip Type : Standard gun grip for the greasing tool Shape : Cylindrical for barrel and rectangular for frame Dimension (L*W*H) : Compact for portability dimensions not specified in image Handle Material : Other, Metal

Send Inquiry

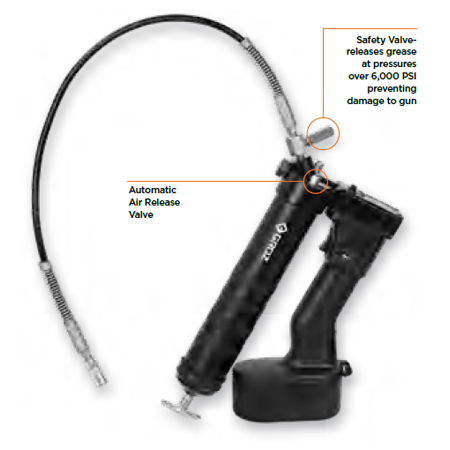

Battery Powered Grease Gun Features : Durable Tool Type : grease gun Surface Finish : Smooth Material : Stainless Steel Function : Hand Tools
