Mechanical Oil Control Gun

Get a Price/Quote

Product Details:

Surface Finish Smooth
Function Hand Tools
Features Durable
Tool Type oil control rings
Material Carbon Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mechanical Oil Control Gun Product Specifications

Tool Type oil control rings
Surface Finish Smooth
Function Hand Tools
Features Durable
Material Carbon Steel

Product Description

Mechanical Oil Control Gun

Super accuracy heavy duty gun for controlling fluid deliveries in most demanding applications
Oval gear mechanism
High accuracy mechanical display
Aluminium die cast meter & gun body with protective shroud on meter
Built-in continuous flow switch can be activated for unattended dispensing
Built-in swivel at inlet for easy maneuverability
Supplied complete with rigid steel extension, and manual non drip nozzle
WETTED COMPONENTS Aluminum, Acetal, Nitrile Rubber & Steel
RECOMMENDED USE Oils Upto SAE 140, Diesel, Kerosene & Engine Coolants (RTU)
DO NOT USE WITH Water Based Media, Petrol etc.

SPECIFICATIONS

Flow Rate	1-30 LPM
Accuracy	1%
Repeatability	0.30%
Max. Working Pressure	1000 PSI (70 BAR)
Pressure Loss	10 PSI (0.7 BAR)
Working Temperature Range	10C to 55C
Max. Resettable Batch Totalizer	999.9 litres
Max. Non Resettable Batch Totalizer	999999.9 litres
Least Count /Resolution	0.10 litres
Inlet Threaded	1/2" BSPT (F)
Water Resistance	IP55

FLOW RATE: 1-30 LPM
PRESSURE: UPTO 1,000 PSI (70 BAR)
TEMPERATURE: 10C TO 55C

ORDERING INFORMATION

CAT NR.	BOX QTY.
OM-100/OGN/R-M/B	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Oiling Equipment' category

Lever Action Barrel Pump Surface Finish : Polished for corrosion resistance Tool Type : Fluid transfer tool Features : Manually operated lever action with ergonomic grip Function : Transfer liquids including oil diesel and other fluids from barrels Material : Steel and plastic, Other Motor Power : N/A; manually operated Power Source : Manual Handle Material : Other, Rubber and metal Voltage : N/A; manually operated Shape : Cylindrical Grip Type : Ergonomic grip handle

Send Inquiry

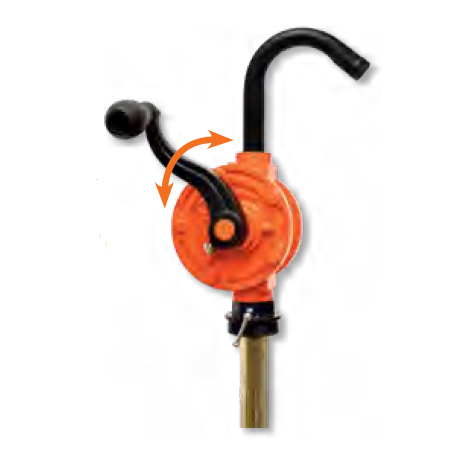

Rotary Barrel Pump V Series Surface Finish : Painted Tool Type : Rotary barrel pump Features : Rotary action manual operation Function : Used for extracting liquids such as oil lubricants diesel and other fluids from barrels Material : Other, Metal and plastic Motor Power : Not applicable (manual operation) Power Source : Manual Handle Material : Plastic Voltage : Not applicable (manual operation) Shape : Circular pump body with attached pipe Grip Type : Ergonomic grip handle
