Digital Fuel Meter

Get a Price/Quote

Product Details:

Features Durable
Function Hand Tools
Surface Finish Smooth
Tool Type digital fuel meter
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Digital Fuel Meter Product Specifications

Surface Finish Smooth
Tool Type digital fuel meter
Features Durable
Function Hand Tools

Product Description

Digital Fuel Meter

Digital Turbine meter for low viscosity fluids, easy to install in line or for end of the line applications
Polyamide turbine measuring mechanism
Electronic display using two AAA 1.5V batteries
Aluminium body and sealed electronic card makes it suitable for use in severe weather conditions
Bi-directional: Display can be rotated in 4 different positions
Measures in litres, quarts, pints & gallons
Easy user re calibration
Either ports can be used as inlet/outlet

WETTED COMPONENTS Aluminum & Polyamide

RECOMMENDED USE Diesel, Petrol, Bio Diesel,Windshield Fluid, Water

DO NOT USE WITH Oils

SPECIFICATIONS

Accuracy	1%
Repeatability	0.30 %
Burst Pressure	580 PSI (40 BAR)
Working Temperature	10C to 50C
Max. Resettable Batch Totalizer	99,999 Litres
Max. Non Resettable Batch Totalizer	9,99,999 Litres
Least Count/ Resolution	0.001 units
Max. Viscosity Of Media	5.35 cst
Water Resistance	IP 55

Note: Not to be used for commercial sale

ORDERING INFORMATION

CAT NR.	THREADS	BOX QTY.
FM/20/0-1/BSP	1" BSP (M) 1" BSP (F)	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fuel Handling Equipment' category

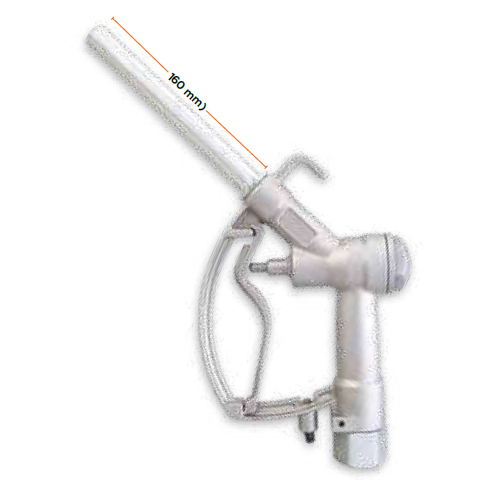

Fuel Control Nozzles Manual Features : Durable and corrosionresistant manual operation ergonomic design Function : Designed for controlling and dispensing fuel manually Tool Type : Manual fuel control nozzle Surface Finish : Polished surface for corrosion resistance Material : Other, Aluminum alloy Handle Material : Other, Highgrade aluminum Power Source : Manual operation no external power required Dimension (L*W*H) : Standard dimensions available customizable as per requirement Shape : Streamlined shape for efficient fuel flow Gauge : Standard gauge compatible with typical fuel dispensers Grip Type : Ergonomic grip for ease of use Tensile Strength : High tensile strength for durability in demanding environments Warranty : 1 year against manufacturing defects
