Fuel Control Nozzle Metered

Get a Price/Quote

Product Details:

Surface Finish Smooth
Function Hand Tools
Features Durable
Tool Type fuel handling systems
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Fuel Control Nozzle Metered Product Specifications

Tool Type fuel handling systems
Function Hand Tools
Surface Finish Smooth
Features Durable

Product Description

Fuel Control Nozzle Metered

Manual Fuel Control Nozzle fitted with Digital Fuel Meter
Die cast aluminium nozzle with built-in swivel at inlet
Manual nozzle has a switch for un-attended continuous dispensing
Polyamide turbine measuring mechanism
Electronic display using two AAA 1.5V batteries
Aluminium meter body and sealed electronic card makes it suitable for use in severe weather conditions
Measures in litres, quarts, pints & gallons
Easy user re-calibration

WETTED COMPONENTS Polyamide, Aluminum, Steel Nylon, Nitrile Rubber

RECOMMENDED USE Diesel, Petrol

DO NOT USE WITH Oils

FLOW RATE	MAX. WORKING PRESSURE	WORKING TEMPERATURE RANGE
7-75 LPM	50 PSI (3.45 BAR)	0°C TO 50°C

SPECIFICATIONS

Flow Rate	5 to 75 LPM
Accuracy	± 1%
Repeatability	± 0.30 %
Max. Working Pressure	50 PSI (3.45 BAR)
Max. Resettable Batch Totalizer	99,999 Litres
Max. Non Resettable Batch Totalizer	9,99,999 Litres
Least Count/ Resolution	0.001 Units
Max. Viscosity Of Media	5.35 cst
Water Resistant	IP 55

ORDERING INFORMATION

CAT NR.	INLET THREAD	SPOUT OUTER DIA.	BOX QTY.
CAT NR.	INLET THREAD	(mm)	BOX QTY.
FM/20/FCN/3-4/N	3/4" NPT (F)	19	1
FM/20/FCN/0-1/N	1" NPT (F)	25	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fuel Handling Equipment' category

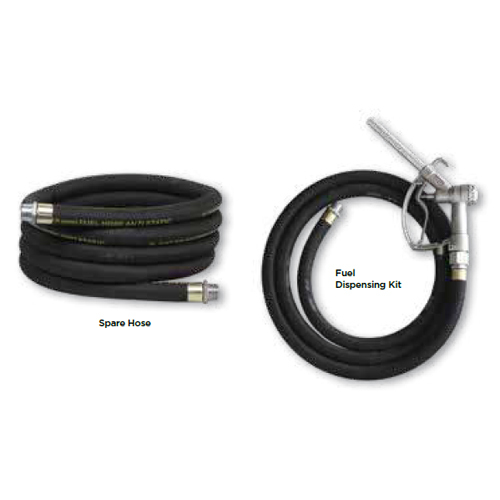

Fuel Dispensing Kits Surface Finish : Smooth rubber finish and metallic nozzle Tool Type : Fuel dispensing kit Function : Dispensing fuel efficiently Features : Durable and flexible fuel dispensing kit Material : Other, Rubber and metal components

Send Inquiry

Fuel Filter Spin On Cartridge Style Surface Finish : Smooth Tool Type : fuel filters Function : Hand Tools Features : Durable Material : Carbon Steel

Send Inquiry

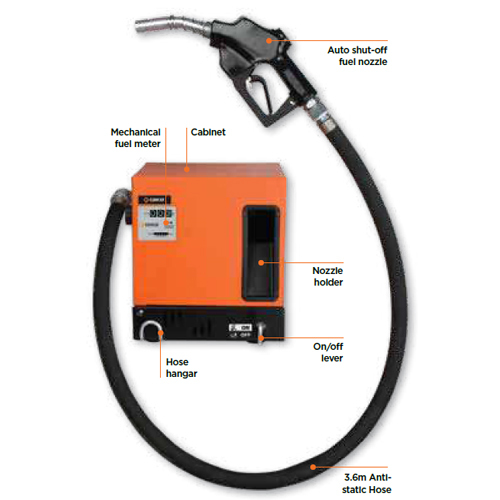

Mini Bowser Diesel Refilling System Surface Finish : Smooth Tool Type : fuel handling systems Function : Hand Tools Features : Durable Material : Carbon Steel
