Mechanical Diesel Meter

Get a Price/Quote

Product Details:

Features Durable
Surface Finish Smooth
Function Hand Tools
Tool Type diesel flow meter
Material Carbon Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mechanical Diesel Meter Product Specifications

Tool Type diesel flow meter
Material Carbon Steel
Function Hand Tools
Surface Finish Smooth
Features Durable

Product Description

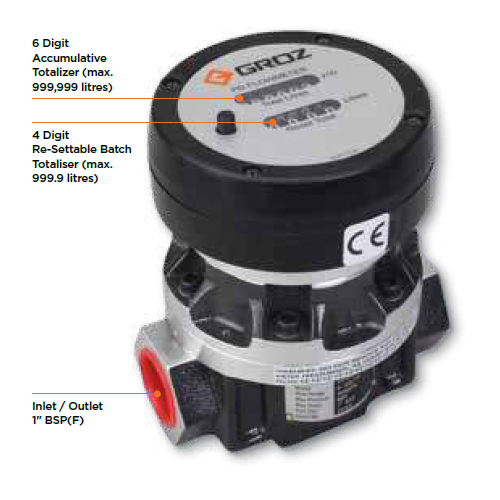

Mechanical Diesel Meter

High accuracy flow meter with mechanical register
Nutating disc mechanism offers high tolerance to contaminated fuels
Meter is designed for both In-Line applications & gravity flow (with a minimum gravity head of 4')
Ideal for use with electric fuel pumps
Register cap can be easily removed & rotated to every 90 orientation forconvenient read out
Robust aluminium die cast construction
Easy user re calibration

WETTED COMPONENTS Aluminium, Buthyl Terephthalate, Nitrile Rubber

RECOMMENDED USE Diesel, Biodiesel, Oils

DO NOT USE WITH Petrol, Water based media

FLOW RATE 20-120 LPM

MAX. WORKING PRESSURE 145 PSI (10 BAR)

WORKING TEMPERATURE RANGE 10C TO 60C

SPECIFICATIONS

Accuracy	1%
Repeatability	0.30 %
Max. Working Pressure	145 PSI (10 BAR)
Burst Pressure	435 PSI (30 BAR)
Pressure Loss	3 PSI (0.20 BAR)
Max. Resettable Batch Totalizer	999 Litres
Max. Non Resettable Batch Totalizer	9,99,999 Litres
Least Count/ Resolution	0.10 Litre
Max Viscosity Of Media	5.35 cst

Note: Not to be used for commercial sale

ORDERING INFORMATION

CAT NR.	THREADS	BOX QTY.
FM-10/0-1/BSP	1" BSP (F)	1

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fuel Handling Equipment' category

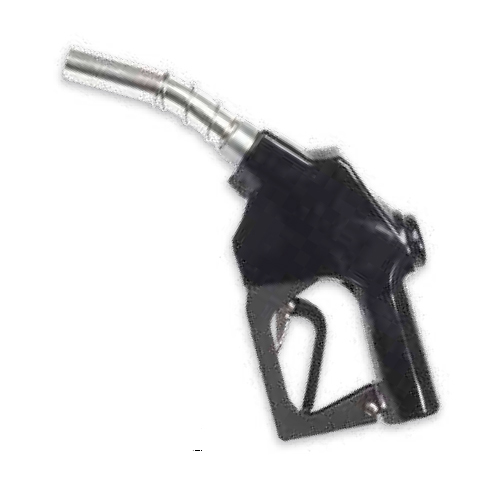

Fuel Control Nozzles Automatic Function : Fuel control and dispensing Tool Type : Fuel nozzle Features : Automatic shutoff fuel dispensing Surface Finish : Glossy black finish Material : Other, Aluminum alloy and plastic Handle Material : Other, Metal with polymer coating Shape : Nozzleshaped
